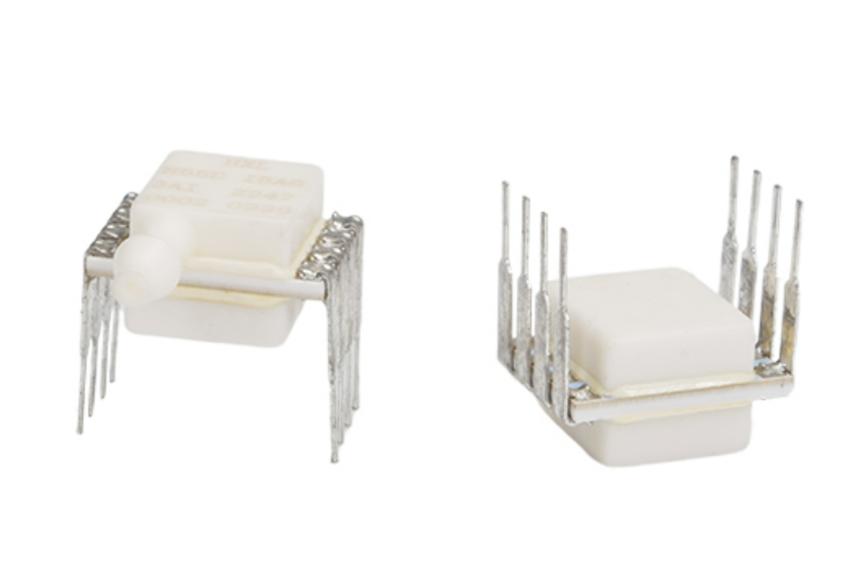

华芯联科技H65D系列数字输出压力传感器是一种陶瓷基体的,PCB 板载安装方式的压力传感器,可测量绝压、表压或差压, 是一种压阻式硅压力传感器,能够进行数字输出,从而在指定的满量程压力和温度范围内独处压力,性能稳定。
产品特点
- 面向特种场景热管理应用,真正实现国产替代
- 可选充胶,低功耗
- 高精度压力测量
- 3.3或5.0V单端供电
- 顶部,侧边引压管或引压孔
- J型贴装引脚或直插式引脚
产品参数
- 供电电压:2.7~5.5V
- 供电电流: 3mA
- 输出跨度: 14746 10 System
- 零点输出: 1638
- 过载压力: 4 BarA
- 爆破能力: 4.8BarA
- 启动延时: 10ms
- 零点长期漂移(一年): ± 0.2% FSS
- 输出分辨率: 14bit
- 无缺码分辨率: 12~13bit
- 分辨率: 11bit
- 更新率: 0.5/ms
- 总计偏差: ±0.5~± 1.0% FSS
- 精度: ±0.1~±0.25%FSS BFSL
- 总体精度: 2℃
- 湿度: Gas medium: 0% to 95% relative humidity, non-condensing; Liquid medium: 100% condensed or direct liquid medium on port 1
- 振动: MIL-STD-202G, test method 204D, Ambient conditions B (15g, 10Hz to 2Hz)
- 冲击: MIL-STD-202G, test method 213B, Ambient conditions C (100g, 6ms duration)
- 工作寿命: At least 1 million pressure cycles
- 工作介质: Suitable for non-corrosive, non-ionic working fluids, such as air, Dry gas, fluoride liquid, etc
